With Beckhoff's XTS EcoLine, concrete benefits, maximum compatibility and reduced costs

Modularity, sustainability and efficiency among the qualities of the new transport system

An environmentally sustainable version of XTS technology, Beckhoff's XTS Ecoline system is a solution that stands out for its high modularity, precision product transport, and ability to optimize production lines in a smart and versatile way. The system is designed to ensure continuous and dynamic movement, combining speed, flexibility and reduced energy consumption that enables companies to reduce their carbon footprint.

Smart system

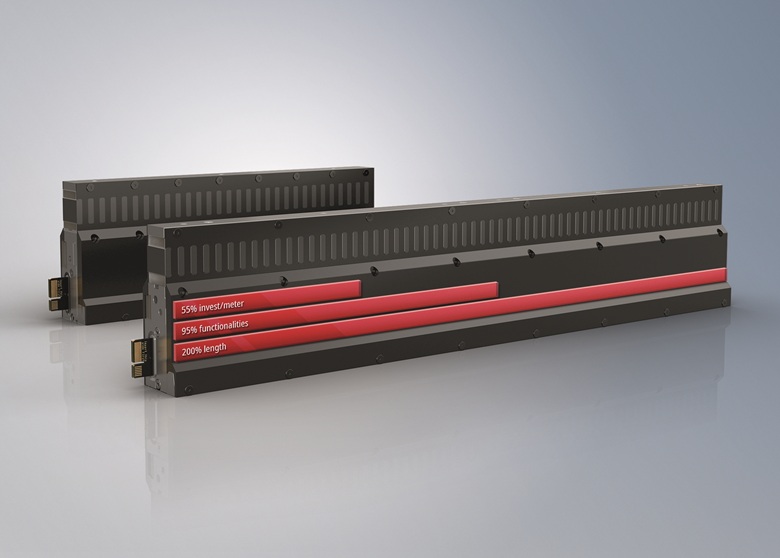

The new XTS EcoLine motor module, which is fully backward compatible, enables even more profitable use of Beckhoff's manufactured intelligent transport systems, including 95 percent of the technical features of the most popular motor modules at a cost of 55 percent of solutions of the same length.

Unique dimensions on the market

XTS EcoLine also stands out for its dimensions: its 500 mm make it twice as long as standard straight modules, while still fitting fully into the grid. XTS also provides reliability, robustness, and specifications for travel speed and acceleration of up to 4 m/s and up to 10 g, respectively.

XTS Ecoline: the pluses

The XTS EcoLine module type differs slightly from the XTS line in a number of technical features ranging from absolute accuracy of 0.70 mm to repeatability of 0.075 mm; from minimum product distance at 70 mm, to initial nominal force up to 30 N and peak force per mover up to 80 N.

Compatibility

The XTS EcoLine motor module is fully compatible with standard motor modules, making it extremely versatile for applications such as processes that do not require extremely high values in terms of accuracy or product distance; operation in combination with high-precision motor modules aimed, for example, at creating transfer paths without process stations.

Sustainability protagonist

A key feature of the XTS Ecoline is the reduction of energy consumption. In fact, Beckhoff's advanced technology makes it possible to optimize energy use, thanks to low-loss synchronous motors and an intelligent control system that adjusts power according to system needs. Thus, with XTS Ecoline, companies can significantly reduce operating costs without compromising performance with a high-efficiency transport system that contributes to greener resource management by combining productivity and sustainability.
